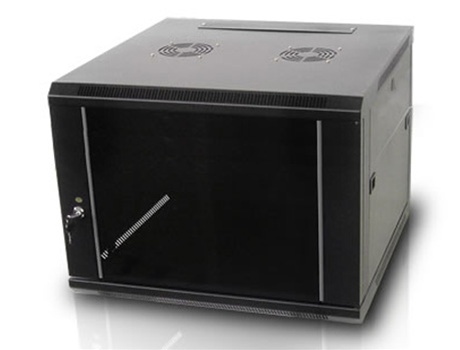

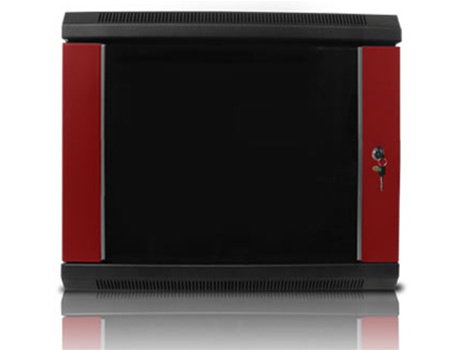

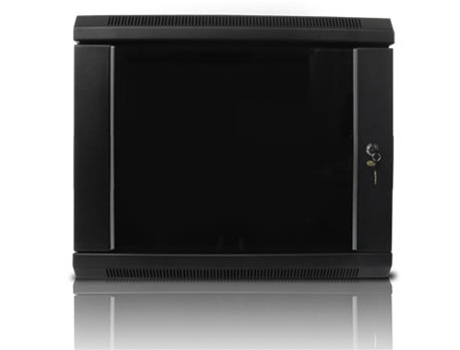

Elegant and secured WM945B wall mount cabinet by iStarUSA. The easy side panel access is convenient to perform routine maintenance, but also can be locked to prevent unauthorized access. Three ways, top, bottom, and rear cabling tunnels enable data and cable routing. WM series incorporate optimal cooling design. The partially vented frames and two optional AC fans that can be put on the top panel give the wall-mount cabinet excellent air ventilation. Heat-treated glass door provides extra strength and able to silkscreen logos, marks, and labels to boost product image.

Features

• Sturdy and Rugged Welded Frame Structure Comes Pre-Assembled
• Excellent Air Ventilation Design with Optional Dual AC Cooling Fans
• Three Ways, Top, Bottom, and Rear Cabling Tunnels
• Wallmount or Desktop Standalone
• Meet IP20 Protection Grade
• Enforced Strengthen Glass Front Door with Security Key Lock
• Removable Side Panels with Easy Handy Latches
• 2.0mm SPCC High-Quality Cold Roll Steel Post; 1.2mm for Enclosure
• Degreasing, Acidification, Phosphoric, Static Electricity or Powder Coat Surface Finish

Specification:

Model	WM945B
RoHS Compliance Version	Yes
Dimensions (W x H x D)	600 x 510 x 450 mm
Security	Front & Rear Locks
Rack Units	9U
Industry Standard	Accord with ANSI/EIARS-310-D, IEC297-2, DIN41491, DIN41494, PART7GB/T3047.2-92
Thickness	2.0mm SPCC High-Quality Cold Roll Steel Post; 1.2mm for Enclosure
Material	SPCC high-quality cold roll steel
Cooling	2 Optional 120mm AC Fans
